Main Conclusion

Increasing the number of contacts with clients during the campaign does not necessarily result in a higher probability of positive contributions to the "deposit." Therefore, as a strategy to enhance marketing effectiveness, it is considered desirable to minimize contact with customers while increasing the contact duration. Particularly, marketing outcomes do not seem to be significantly influenced by the customer's age. It appears more favorable to focus on customers who were successful in previous marketing campaigns and students.






Summary for Results by Analysis Procedures

Step01. Data Extraction

  • Missing Value & Duplication Inspection: It has been confirmed that there are no data missing or duplicates, and the the training dataset consists of 45,211 instances while the test dataset 4,521 instances.

Step02. Exploratory Data Analysis

  • Descriptive Statistics: The datasets consists of a total of 17 columns, including 10 columns of string type and 6 columns of integer or floating-point type.

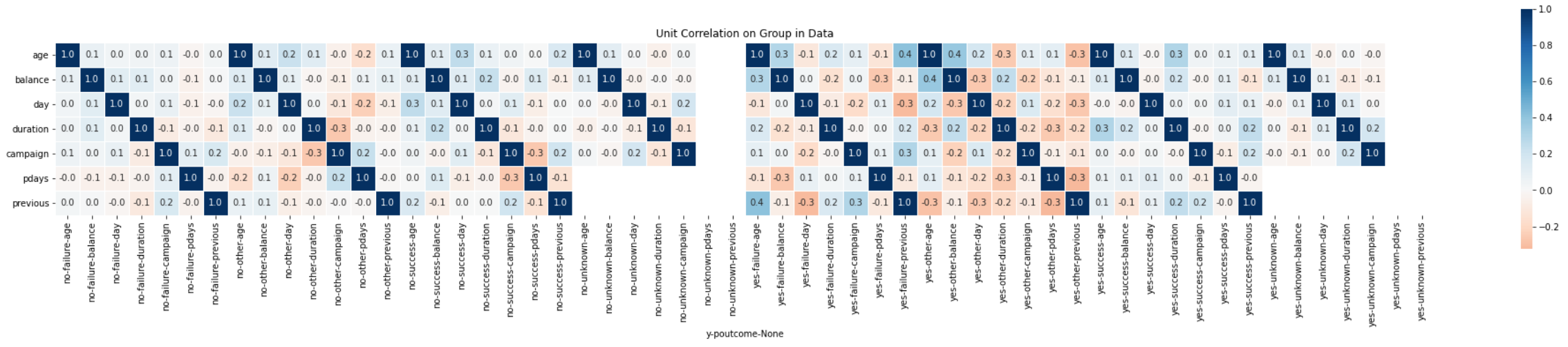

  • Exploration of independence between features: It has been confirmed that there are no explainatory variables (16 columns) that maintain independence.

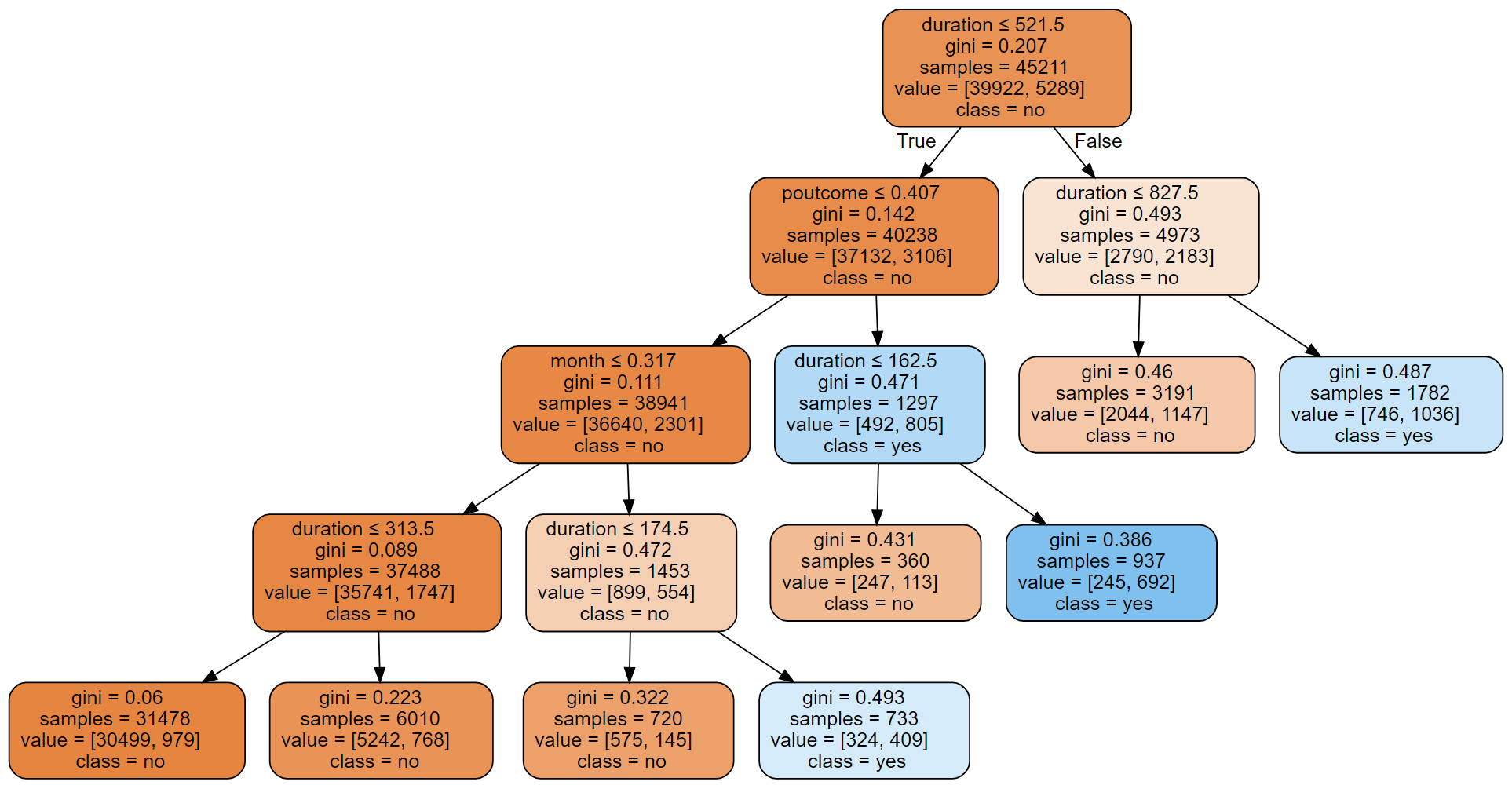

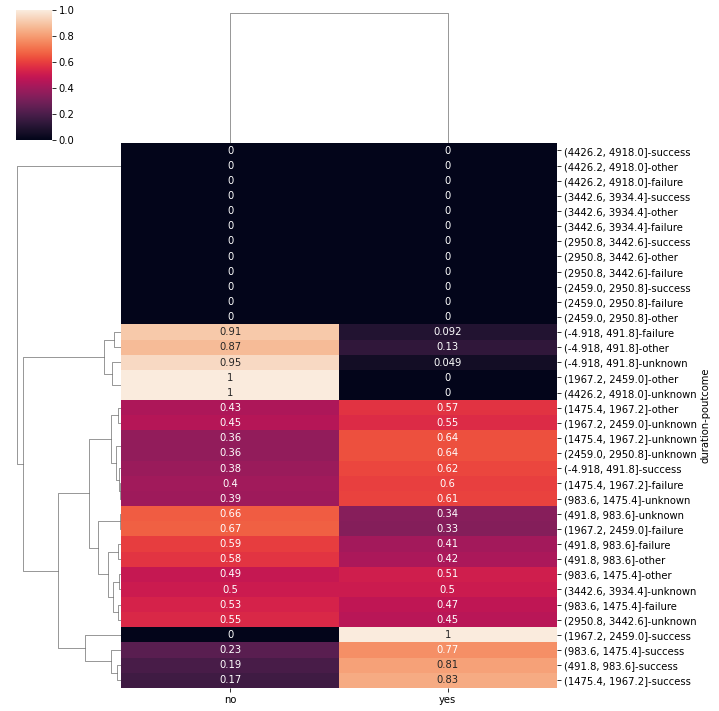

  • Exploration of association with target feature: Based on decision tree and association analysis, it is inferred that the attributes "duration", "balance", "poutcome", and "month" are the major factors that determine the "deposit"(target feature).

Step03. Linear Relationship Analysis

  • Regression Analysis: It has been observed that the attributes "default", "marital", "load", "education", and "age" exhibit a strong multicollinearity. As a result, the attribute that contributes most positively to the "deposit" is "duration". Specifically, when the job is "student" or the previous marketing campaign was successful, there is a higher probability of positive contribution to the "deposit." On the other hand, the attribute "campaign" has a negative contribution. When the job is "student" and the education level is "tertiary," the probability of positive contribution to the "deposit" is low.

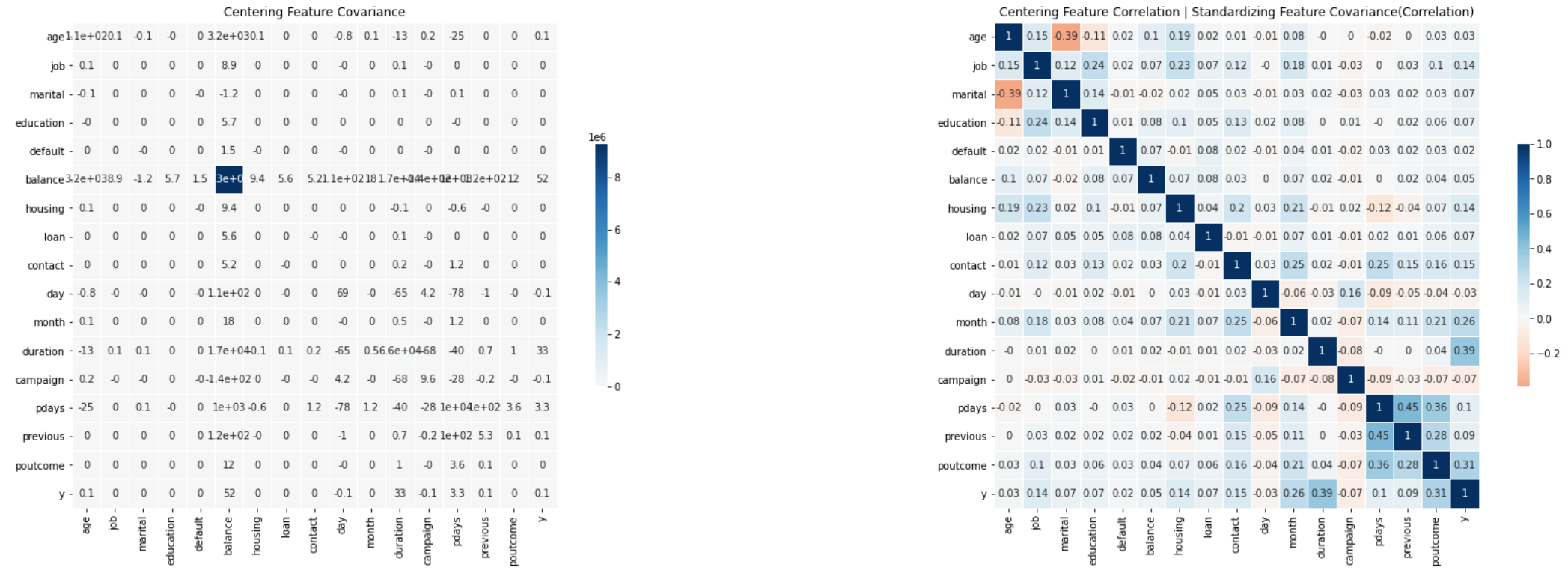

  • Covariance Analysis: It has been observed that the combinations of explanatory variables with positive correlation are ("job", "education"), ("pdays", "previous"), ("pdays", "poutcome"), and ("previous", "poutcome"). On the other hand, the combination of ("age", "marital") has been identified to have a negative correlation. Futhermore, it has been determined that the target variable has a positive correlation with "duration", "poutcome", and "month".
  • Exploratory Factor Analysis: It has been observed that "pdays", "previous", and "poutcome" share a common factor related to previous campaigns. Additionally, it has been confimed that "age" and "marital" also share customer demographic attributes. Moreover, "age", "job", "education", "housing", "contact", and "month" have been found to interact synergistically with the "deposit".

Step04. Predictive Modeling and Evaluation

  • Effect validation by data preprocessing scenarioes: Based on the recall score and the LDA model, four main preprocessing approaches were explored. It appears that the prior effect, upsampling, addressing modeling assumptions approaches have shown positive effects. However, outliers handling seems to have demonstrated no significant impact on the results.
  • Validation baseline for training models: After conducting two rounds of testing on the sampled data, it has been observed that the baseline model yielded low recall scores. In order to improve the recall score, various modeling approaches are being explored. LDA, KNN, and GBC models are considered effective for enhancing performace.
  • AI Model Evaluation: Great job on improving the recall score of the KNN baseline model from 0.3647 to 0.9674. However, it's important to note that there is a trade-off effect as the precision decreased from 0.5460 to 0.4448.

Step05. Summary for Results by Analysis Procedures

Step06. Main Conclusion






Predictive Modeling and Evaluation

AI Model Evaluation

Final test result

model total TP TN FP FN accuracy precision recall f1
logisticregression 4521 374 3500 500 147 0.856890 0.427918 0.717850 0.536201
lineardiscriminantanalysis 4521 359 3571 429 162 0.869277 0.455584 0.689060 0.548510
svc 4521 361 3200 800 160 0.787658 0.310939 0.692898 0.429251
kneighborsclassifier 4521 504 3371 629 17 0.857111 0.444837 0.967370 0.609432
extratreeclassifier 4521 492 1959 2041 29 0.542137 0.194236 0.944338 0.322200
gradientboostingclassifier 4521 520 637 3363 1 0.255917 0.133917 0.998081 0.236149

cross-validation for full dataset: 2-fold & 2-repeated











Validation baseline for training models

Modeling

probabilistic generative models: GNB, LDA, QDA, ...

main objective: probabilistic interpretation for conditional distribution of features on data

  • selected validation models: 'linear discriminative analysis' model
    • checking point: conditional independence viloation of the distribution of individual classes

probabilistic discriminative models: KNN, DT, RF, Ensembles, Logit, SVM, NN, ...

main objective: probabilistic interpretation for information quantity(i.e. information gain) of each features on data

  • selected validation models: 'k-nearst neighbors', 'extra tree', 'gradient boosting ensemble'
    • checking point: the hard or soft decision boundary between classes
  • selected validation models: 'logistic regression', 'support vector machine' model
    • checking point: feature independence viloation



Hyper-parameter ranges to prevent overfitting during learning

Model hyper-parameter1 hyper-parameter2 hyper-parameter3
Logistic C: [0.001, 0.005, 0.007]
LDA priors: [(0.1, 0.9), (0.2, 0.8), (0.3, 0.7)]
SVC C: [0.01, 0.05, 0.07]
KNN n_neighbors: [20, 30] leaf_size: [30, 50, 100]
ETC min_impurity_decrease: [0.01, 0.05, 0.1] max_depth: [10, 20, 30]
GBC min_impurity_decrease: [0.01, 0.05, 0.1] n_estimators: [10, 30, 50] subsample: [0.7, 0.8, 1]



Transformers for data preprocessing

Objective
: preprocessing
Normality
and decision boundry secure
Numericalization Feature selection Dimensionality
reduction
Feature
diversification
Model Powertransformer OnehotEncoder SelectPercentile PCA SplineTransformer
Logistic O X O X O
LDA O X O X O
SVC O O O X O
KNN O O O X O
ETC O O O X O
GBC O O O X O





Validation Result

2nd test result

preprocessing for stratified sampling (frac=.1 & 3 repeated * 5 fold)

  • upsampling SMOTE
  • custom preprocessing for continous feature
model total TP TN FP FN accuracy precision recall f1
logistic 4521 390 3469 531 131 0.8535 0.4234 0.7485 0.5409
LDA 4521 354 3551 449 167 0.8637 0.4408 0.6794 0.5347
SVC 4521 350 3241 759 171 0.7942 0.3156 0.6717 0.4294
KNN 4521 415 3041 959 106 0.7644 0.3020 0.7965 0.4379
ETC 4521 327 2507 1493 194 0.6268 0.1796 0.6276 0.2793
GBC 4521 520 677 3323 1 0.2647 0.1353 0.9980 0.2383

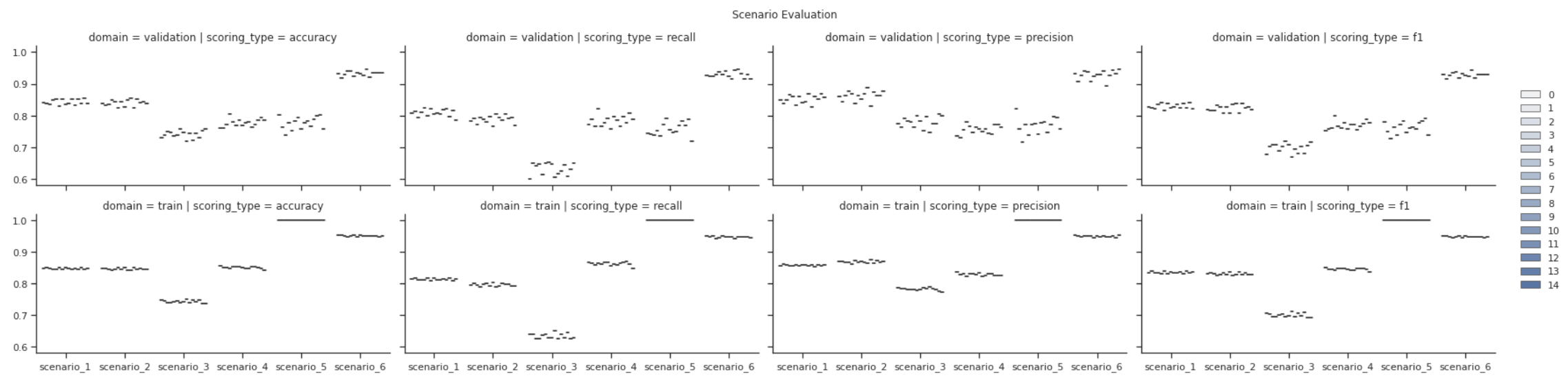

(Validation for Train Dataset) Scenario 1~6: Logistic, LDA, SVC, KNN, Extra-Tree, Gradient Boosting Ensemble



1st test result

baseline for stratified sampling (frac=.1 & 3 repeated * 5 fold)

model total TP TN FP FN accuracy precision recall f1
Logistic 4521 142 3922 78 379 0.8989 0.6455 0.2726 0.3833
LDA 4521 198 3879 121 323 0.9018 0.6207 0.3800 0.4714
SVC 4521 0 4000 0 521 0.8848 0.0000 0.0000 0.0000
KNN 4521 190 3842 158 331 0.8918 0.5460 0.3647 0.4374
ETC 4521 98 3953 47 423 0.8960 0.6759 0.1881 0.2943
GBC 4521 221 3865 135 300 0.9038 0.6208 0.4242 0.5040

(Validation for Train Dataset) Scenario 1~6: Logistic, LDA, SVC, KNN, Extra-Tree, Gradient Boosting Ensemble





Effect validation by data preprocessing scenarioes

First, prior effect, this involves addressing the influence or prior information or biases in the data. Second, upsampling for class imbalance, to tackle class imbalance, upsampling techniques were applied to increase the representation of the minority class. Third, effects of addressing modeling assumptions, this includes addressing assumptions such as normality, standardization, and normalization to meet the modeling requirements. Lastly, outlier handling, the effect of outlier handling was examined, which involves identifying and dealing with data points that deviate significantly from the overall pattern. These four preprocessing approaches were evaluated in terms of their impact on the performance, specifically with regard to the recall score and the LDA model.





Cost-sensitive priors

Priors: effective

test_recall
param_priors
(0.1, 0.9) 0.9210
(0.2, 0.8) 0.8801
(0.3, 0.7) 0.8427
(0.4, 0.6) 0.7973
(0.5, 0.5) 0.7512
(0.6, 0.4) 0.6948
(0.7, 0.3) 0.6347
(0.8, 0.2) 0.5752
(0.9, 0.1) 0.4925
Source SS DF MS F p-unc np2
0 param_priors 0.8366 8 0.1046 284.0343 0.0 0.9844
1 Within 0.0133 36 0.0004 NaN NaN NaN
A(no, yes) B(no, yes) mean(A) mean(B) diff se T p-tukey hedges
0 (0.1, 0.9) (0.2, 0.8) 0.9210 0.8801 0.0408 0.0121 3.3652 0.0424 4.8871
1 (0.1, 0.9) (0.3, 0.7) 0.9210 0.8427 0.0783 0.0121 6.4498 0.0000 4.9797
2 (0.1, 0.9) (0.4, 0.6) 0.9210 0.7973 0.1237 0.0121 10.1891 0.0000 6.1375
3 (0.1, 0.9) (0.5, 0.5) 0.9210 0.7512 0.1698 0.0121 13.9904 0.0000 8.8321
4 (0.1, 0.9) (0.6, 0.4) 0.9210 0.6948 0.2261 0.0121 18.6331 0.0000 13.1020
5 (0.1, 0.9) (0.7, 0.3) 0.9210 0.6347 0.2863 0.0121 23.5874 0.0000 15.2181
6 (0.1, 0.9) (0.8, 0.2) 0.9210 0.5752 0.3458 0.0121 28.4951 0.0000 23.8565
7 (0.1, 0.9) (0.9, 0.1) 0.9210 0.4925 0.4284 0.0121 35.3035 0.0000 26.6182
8 (0.2, 0.8) (0.3, 0.7) 0.8801 0.8427 0.0374 0.0121 3.0846 0.0819 2.3003
9 (0.2, 0.8) (0.4, 0.6) 0.8801 0.7973 0.0828 0.0121 6.8238 0.0000 4.0234
10 (0.2, 0.8) (0.5, 0.5) 0.8801 0.7512 0.1289 0.0121 10.6252 0.0000 6.5521
11 (0.2, 0.8) (0.6, 0.4) 0.8801 0.6948 0.1853 0.0121 15.2679 0.0000 10.4294
12 (0.2, 0.8) (0.7, 0.3) 0.8801 0.6347 0.2454 0.0121 20.2222 0.0000 12.7315
13 (0.2, 0.8) (0.8, 0.2) 0.8801 0.5752 0.3050 0.0121 25.1298 0.0000 20.2030
14 (0.2, 0.8) (0.9, 0.1) 0.8801 0.4925 0.3876 0.0121 31.9383 0.0000 23.2960
15 (0.3, 0.7) (0.4, 0.6) 0.8427 0.7973 0.0454 0.0121 3.7392 0.0164 1.8512
16 (0.3, 0.7) (0.5, 0.5) 0.8427 0.7512 0.0915 0.0121 7.5406 0.0000 3.8515
17 (0.3, 0.7) (0.6, 0.4) 0.8427 0.6948 0.1479 0.0121 12.1833 0.0000 6.6599
18 (0.3, 0.7) (0.7, 0.3) 0.8427 0.6347 0.2080 0.0121 17.1376 0.0000 8.8779
19 (0.3, 0.7) (0.8, 0.2) 0.8427 0.5752 0.2675 0.0121 22.0452 0.0000 13.2921
20 (0.3, 0.7) (0.9, 0.1) 0.8427 0.4925 0.3502 0.0121 28.8537 0.0000 16.4328
21 (0.4, 0.6) (0.5, 0.5) 0.7973 0.7512 0.0461 0.0121 3.8013 0.0140 1.7153
22 (0.4, 0.6) (0.6, 0.4) 0.7973 0.6948 0.1025 0.0121 8.4440 0.0000 4.0142
23 (0.4, 0.6) (0.7, 0.3) 0.7973 0.6347 0.1626 0.0121 13.3984 0.0000 6.1125
24 (0.4, 0.6) (0.8, 0.2) 0.7973 0.5752 0.2222 0.0121 18.3060 0.0000 9.3551
25 (0.4, 0.6) (0.9, 0.1) 0.7973 0.4925 0.3048 0.0121 25.1145 0.0000 12.3113
26 (0.5, 0.5) (0.6, 0.4) 0.7512 0.6948 0.0563 0.0121 4.6427 0.0013 2.2713
27 (0.5, 0.5) (0.7, 0.3) 0.7512 0.6347 0.1165 0.0121 9.5970 0.0000 4.4953
28 (0.5, 0.5) (0.8, 0.2) 0.7512 0.5752 0.1760 0.0121 14.5047 0.0000 7.6636
29 (0.5, 0.5) (0.9, 0.1) 0.7512 0.4925 0.2587 0.0121 21.3131 0.0000 10.7722
30 (0.6, 0.4) (0.7, 0.3) 0.6948 0.6347 0.0601 0.0121 4.9543 0.0005 2.4554
31 (0.6, 0.4) (0.8, 0.2) 0.6948 0.5752 0.1197 0.0121 9.8620 0.0000 5.6052
32 (0.6, 0.4) (0.9, 0.1) 0.6948 0.4925 0.2023 0.0121 16.6704 0.0000 9.0039
33 (0.7, 0.3) (0.8, 0.2) 0.6347 0.5752 0.0596 0.0121 4.9076 0.0006 2.6325
34 (0.7, 0.3) (0.9, 0.1) 0.6347 0.4925 0.1422 0.0121 11.7161 0.0000 6.0041
35 (0.8, 0.2) (0.9, 0.1) 0.5752 0.4925 0.0826 0.0121 6.8085 0.0000 4.0457

Cost-sensitive sampling for target class balancing

  • Under sampling(X)
  • Over sampling(O) : a little bit effective
  • Combined sampling(X)
test_recall
sampling_strategy
0.0 0.303053
0.5 0.805162
0.8 0.866887
0.9 0.882855
1.0 0.893989
F Value Num DF Den DF Pr > F
sampling_strategy 15.723825 4.0 16.0 0.000021
stat pval pval_corr reject
group1 group2
0.0 0.5 -2.7108 0.0266 0.2663 False
0.8 -3.2577 0.0116 0.1157 False
0.9 -3.5244 0.0078 0.078 False
1.0 -3.7396 0.0057 0.0571 False
0.5 0.8 -0.3519 0.734 1.0 False
0.9 -0.4653 0.6541 1.0 False
1.0 -0.5531 0.5953 1.0 False
0.8 0.9 -0.1041 0.9197 1.0 False
1.0 -0.1851 0.8577 1.0 False
0.9 1.0 -0.0818 0.9368 1.0 False

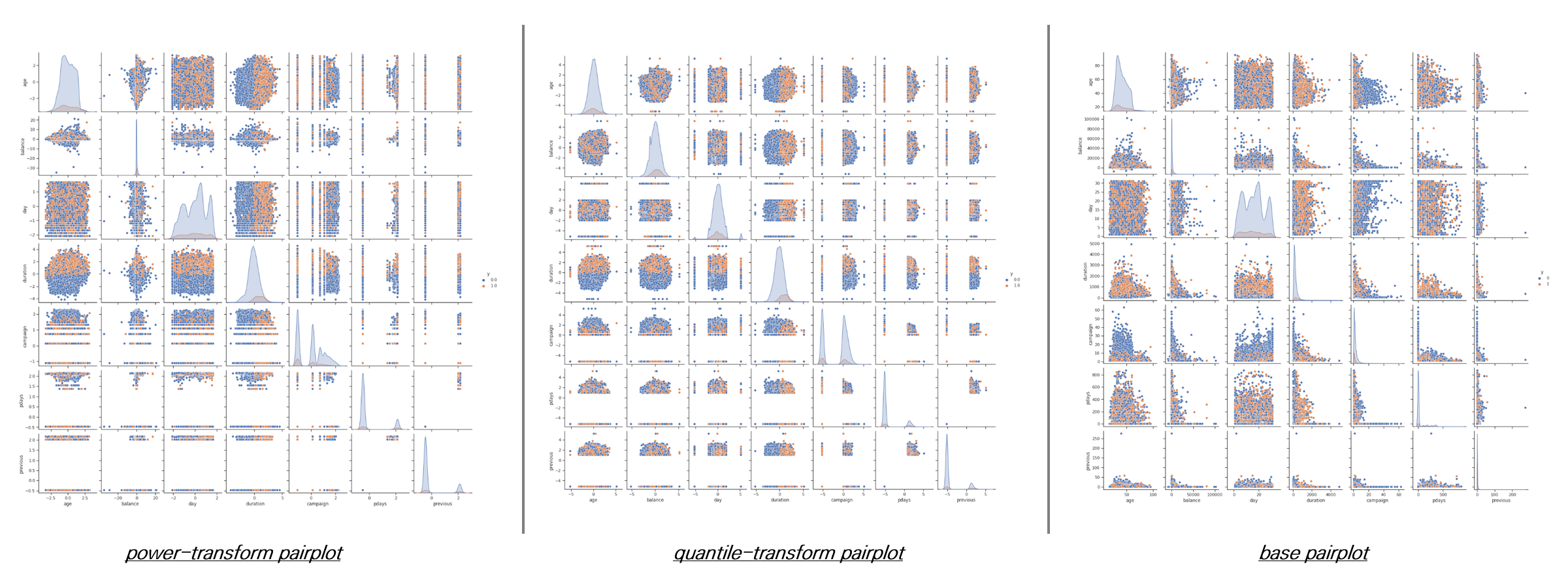

Data transformation

  • Linear independence of the features: Model Assumption
    • Nonlinear transform: Normality; GNB, LDA, QDA
    • Linear transform: Standard Scaling (Z-Transform) for LDA
    • Constraint: Normalization for LDA, QDA
  • Whitening Distribution Outlier
    • Robust Scaling / Minmax Scaling, Maxabs Scaling

Linearity effect: effective

test_recall
treatment
_ 0.3621
_H 0.3621
_HV 0.3849
_N 0.2516
_NH 0.2516
_NHV 0.1976
_NV 0.0000
_V 0.0737
sum_sq df F PR(>F)
C(normality) 0.1452 1.0 9.7369 0.0038
C(heteroscedasticity) 0.1618 1.0 10.8528 0.0024
C(vectorspace) 0.2039 1.0 13.6769 0.0008
C(normality):C(heteroscedasticity) 0.0081 1.0 0.5414 0.4672
C(heteroscedasticity):C(vectorspace) 0.1618 1.0 10.8528 0.0024
C(normality):C(vectorspace) 0.0010 1.0 0.0680 0.7960
C(normality):C(heteroscedasticity):C(vectorspace) 0.0081 1.0 0.5414 0.4672
Residual 0.4770 32.0 NaN NaN
meandiff p-adj lower upper reject
group1 group2
_N _NV -0.2516 0.0478 -0.5018 -0.0015 True
_NH _NV -0.2516 0.0478 -0.5018 -0.0015 True
_ _V -0.2883 0.0149 -0.5385 -0.0382 True
_H _V -0.2883 0.0149 -0.5385 -0.0382 True
_HV _V -0.3112 0.0069 -0.5614 -0.0611 True
_ _NV -0.3621 0.0011 -0.6122 -0.1119 True
_H _NV -0.3621 0.0011 -0.6122 -0.1119 True
_HV _NV -0.3849 0.0005 -0.6351 -0.1348 True
_NV _V 0.0737 0.9776 -0.1764 0.3239 False
_ _HV 0.0229 1.0 -0.2273 0.273 False
_H _HV 0.0229 1.0 -0.2273 0.273 False
_ _H 0.0 1.0 -0.2501 0.2501 False
_N _NH 0.0 1.0 -0.2501 0.2501 False
_NHV -0.0541 0.9964 -0.3042 0.1961 False
_NH _NHV -0.0541 0.9964 -0.3042 0.1961 False
_ _N -0.1104 0.8367 -0.3606 0.1397 False
_NH -0.1104 0.8367 -0.3606 0.1397 False
_H _N -0.1104 0.8367 -0.3606 0.1397 False
_NH -0.1104 0.8367 -0.3606 0.1397 False
_NHV _V -0.1238 0.7446 -0.374 0.1263 False
_HV _N -0.1333 0.671 -0.3834 0.1168 False
_NH -0.1333 0.671 -0.3834 0.1168 False
_ _NHV -0.1645 0.4184 -0.4146 0.0857 False
_H _NHV -0.1645 0.4184 -0.4146 0.0857 False
_N _V -0.1779 0.3224 -0.4281 0.0722 False
_NH _V -0.1779 0.3224 -0.4281 0.0722 False
_HV _NHV -0.1874 0.2634 -0.4375 0.0628 False
_NHV _NV -0.1976 0.2084 -0.4477 0.0526 False

Outlier effect: non-effective

test_recall
scaler contamination
A 0.00 0.260528
0.01 0.260528
0.05 0.260528
0.10 0.260528
0.20 0.260528
0.50 0.260528
M 0.00 0.260528
0.01 0.260528
0.05 0.260528
0.10 0.260528
0.20 0.260528
0.50 0.260528
R 0.00 0.279438
0.01 0.279438
0.05 0.279438
0.10 0.279438
0.20 0.279438
0.50 0.279438
sum_sq df F PR(>F)
C(scaler) 7.151514e-03 2.0 1.613890e-01 0.851268
C(contamination) 2.223554e-32 5.0 2.007168e-31 1.000000
C(scaler):C(contamination) 1.617393e-31 10.0 7.299979e-31 1.000000
Residual 1.595242e+00 72.0 NaN NaN
meandiff p-adj lower upper reject
group1 group2
A0.0 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
A0.01 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
A0.05 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
A0.1 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
A0.2 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
A0.5 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
M0.0 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
M0.01 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
M0.05 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
M0.1 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
M0.2 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
M0.5 R0.0 0.0189 1.0 -0.3217 0.3595 False
R0.01 0.0189 1.0 -0.3217 0.3595 False
R0.05 0.0189 1.0 -0.3217 0.3595 False
R0.1 0.0189 1.0 -0.3217 0.3595 False
R0.2 0.0189 1.0 -0.3217 0.3595 False
R0.5 0.0189 1.0 -0.3217 0.3595 False
A0.0 A0.01 0.0 1.0 -0.3406 0.3406 False
A0.05 0.0 1.0 -0.3406 0.3406 False
A0.1 0.0 1.0 -0.3406 0.3406 False
A0.2 0.0 1.0 -0.3406 0.3406 False
A0.5 0.0 1.0 -0.3406 0.3406 False
M0.0 0.0 1.0 -0.3406 0.3406 False
M0.01 0.0 1.0 -0.3406 0.3406 False
M0.05 0.0 1.0 -0.3406 0.3406 False
M0.1 0.0 1.0 -0.3406 0.3406 False
M0.2 0.0 1.0 -0.3406 0.3406 False
M0.5 0.0 1.0 -0.3406 0.3406 False
A0.01 A0.05 0.0 1.0 -0.3406 0.3406 False
A0.1 0.0 1.0 -0.3406 0.3406 False
A0.2 0.0 1.0 -0.3406 0.3406 False
A0.5 0.0 1.0 -0.3406 0.3406 False
M0.0 0.0 1.0 -0.3406 0.3406 False
M0.01 0.0 1.0 -0.3406 0.3406 False
M0.05 0.0 1.0 -0.3406 0.3406 False
M0.1 0.0 1.0 -0.3406 0.3406 False
M0.2 0.0 1.0 -0.3406 0.3406 False
M0.5 0.0 1.0 -0.3406 0.3406 False
A0.05 A0.1 0.0 1.0 -0.3406 0.3406 False
A0.2 0.0 1.0 -0.3406 0.3406 False
A0.5 0.0 1.0 -0.3406 0.3406 False
M0.0 0.0 1.0 -0.3406 0.3406 False
M0.01 0.0 1.0 -0.3406 0.3406 False
M0.05 0.0 1.0 -0.3406 0.3406 False
M0.1 0.0 1.0 -0.3406 0.3406 False
M0.2 0.0 1.0 -0.3406 0.3406 False
M0.5 0.0 1.0 -0.3406 0.3406 False
A0.1 A0.2 0.0 1.0 -0.3406 0.3406 False
A0.5 0.0 1.0 -0.3406 0.3406 False
M0.0 0.0 1.0 -0.3406 0.3406 False
M0.01 0.0 1.0 -0.3406 0.3406 False
M0.05 0.0 1.0 -0.3406 0.3406 False
M0.1 0.0 1.0 -0.3406 0.3406 False
M0.2 0.0 1.0 -0.3406 0.3406 False
M0.5 0.0 1.0 -0.3406 0.3406 False
A0.2 A0.5 0.0 1.0 -0.3406 0.3406 False
M0.0 0.0 1.0 -0.3406 0.3406 False
M0.01 0.0 1.0 -0.3406 0.3406 False
M0.05 0.0 1.0 -0.3406 0.3406 False
M0.1 0.0 1.0 -0.3406 0.3406 False
M0.2 0.0 1.0 -0.3406 0.3406 False
M0.5 0.0 1.0 -0.3406 0.3406 False
A0.5 M0.0 0.0 1.0 -0.3406 0.3406 False
M0.01 0.0 1.0 -0.3406 0.3406 False
M0.05 0.0 1.0 -0.3406 0.3406 False
M0.1 0.0 1.0 -0.3406 0.3406 False
M0.2 0.0 1.0 -0.3406 0.3406 False
M0.5 0.0 1.0 -0.3406 0.3406 False
M0.0 M0.01 0.0 1.0 -0.3406 0.3406 False
M0.05 0.0 1.0 -0.3406 0.3406 False
M0.1 0.0 1.0 -0.3406 0.3406 False
M0.2 0.0 1.0 -0.3406 0.3406 False
M0.5 0.0 1.0 -0.3406 0.3406 False
M0.01 M0.05 0.0 1.0 -0.3406 0.3406 False
M0.1 0.0 1.0 -0.3406 0.3406 False
M0.2 0.0 1.0 -0.3406 0.3406 False
M0.5 0.0 1.0 -0.3406 0.3406 False
M0.05 M0.1 0.0 1.0 -0.3406 0.3406 False
M0.2 0.0 1.0 -0.3406 0.3406 False
M0.5 0.0 1.0 -0.3406 0.3406 False
M0.1 M0.2 0.0 1.0 -0.3406 0.3406 False
M0.5 0.0 1.0 -0.3406 0.3406 False
M0.2 M0.5 0.0 1.0 -0.3406 0.3406 False
R0.0 R0.01 0.0 1.0 -0.3406 0.3406 False
R0.05 0.0 1.0 -0.3406 0.3406 False
R0.1 0.0 1.0 -0.3406 0.3406 False
R0.2 0.0 1.0 -0.3406 0.3406 False
R0.5 0.0 1.0 -0.3406 0.3406 False
R0.01 R0.05 0.0 1.0 -0.3406 0.3406 False
R0.1 0.0 1.0 -0.3406 0.3406 False
R0.2 0.0 1.0 -0.3406 0.3406 False
R0.5 0.0 1.0 -0.3406 0.3406 False
R0.05 R0.1 0.0 1.0 -0.3406 0.3406 False
R0.2 0.0 1.0 -0.3406 0.3406 False
R0.5 0.0 1.0 -0.3406 0.3406 False
R0.1 R0.2 0.0 1.0 -0.3406 0.3406 False
R0.5 0.0 1.0 -0.3406 0.3406 False
R0.2 R0.5 0.0 1.0 -0.3406 0.3406 False










Linear relationship analysis

Regression Analysis

(Note) Regression analysis has been conducted with one-hot encoding for categorical variables





Logit analysis summary table

  • representative positive effect factors on deposit: C(poutcome)[T.success], C(month)[T.mar], C(job)[T.student], duration
  • representative negative effect factors on deposit: C(contact)[unknown], C(contact)[telephone], C(contact)[cellular], C(month)[T.jan], campaign

with feature interaction

centering standardizing
feature coef std err z P>|z| [0.025 0.975] feature coef std err z P>|z| [0.025 0.975]
1 C(contact)[cellular] -1.5389 0.136 -11.350 0.000 -1.805 -1.273 C(contact)[cellular] -1.5389 0.136 -11.350 0.000 -1.805 -1.273
2 C(contact)[telephone] -1.7394 0.153 -11.356 0.000 -2.040 -1.439 C(contact)[telephone] -1.7394 0.153 -11.356 0.000 -2.040 -1.439
3 C(contact)[unknown] -3.2081 0.157 -20.396 0.000 -3.516 -2.900 C(contact)[unknown] -3.2081 0.157 -20.396 0.000 -3.516 -2.900
4 C(housing)[T.yes] -0.6947 0.044 -15.956 0.000 -0.780 -0.609 C(housing)[T.yes] -0.6947 0.044 -15.956 0.000 -0.780 -0.609
5 C(job)[T.blue-collar] -0.4229 0.070 -6.069 0.000 -0.559 -0.286 C(job)[T.blue-collar] -0.4229 0.070 -6.069 0.000 -0.559 -0.286
6 C(job)[T.entrepreneur] -0.3586 0.123 -2.912 0.004 -0.600 -0.117 C(job)[T.entrepreneur] -0.3586 0.123 -2.912 0.004 -0.600 -0.117
7 C(job)[T.housemaid] -0.6010 0.133 -4.527 0.000 -0.861 -0.341 C(job)[T.housemaid] -0.6010 0.133 -4.527 0.000 -0.861 -0.341
8 C(job)[T.management] -0.0188 0.064 -0.295 0.768 -0.144 0.106 C(job)[T.management] -0.0188 0.064 -0.295 0.768 -0.144 0.106
9 C(job)[T.retired] 0.1480 0.084 1.762 0.078 -0.017 0.313 C(job)[T.retired] 0.1480 0.084 1.762 0.078 -0.017 0.313
10 C(job)[T.self-employed] -0.2023 0.109 -1.864 0.062 -0.415 0.010 C(job)[T.self-employed] -0.2023 0.109 -1.864 0.062 -0.415 0.010
11 C(job)[T.services] -0.2544 0.084 -3.037 0.002 -0.419 -0.090 C(job)[T.services] -0.2544 0.084 -3.037 0.002 -0.419 -0.090
12 C(job)[T.student] 0.5845 0.104 5.638 0.000 0.381 0.788 C(job)[T.student] 0.5845 0.104 5.638 0.000 0.381 0.788
13 C(job)[T.technician] -0.1352 0.068 -1.981 0.048 -0.269 -0.001 C(job)[T.technician] -0.1352 0.068 -1.981 0.048 -0.269 -0.001
14 C(job)[T.unemployed] -0.1438 0.110 -1.304 0.192 -0.360 0.072 C(job)[T.unemployed] -0.1438 0.110 -1.304 0.192 -0.360 0.072
15 C(job)[T.unknown] -0.2998 0.230 -1.302 0.193 -0.751 0.151 C(job)[T.unknown] -0.2998 0.230 -1.302 0.193 -0.751 0.151
16 C(month)[T.aug] -0.7064 0.078 -9.036 0.000 -0.860 -0.553 C(month)[T.aug] -0.7064 0.078 -9.036 0.000 -0.860 -0.553
17 C(month)[T.dec] 0.7147 0.176 4.053 0.000 0.369 1.060 C(month)[T.dec] 0.7147 0.176 4.053 0.000 0.369 1.060
18 C(month)[T.feb] -0.1413 0.089 -1.583 0.113 -0.316 0.034 C(month)[T.feb] -0.1413 0.089 -1.583 0.113 -0.316 0.034
19 C(month)[T.jan] -1.2649 0.121 -10.412 0.000 -1.503 -1.027 C(month)[T.jan] -1.2649 0.121 -10.412 0.000 -1.503 -1.027
20 C(month)[T.jul] -0.9189 0.077 -11.995 0.000 -1.069 -0.769 C(month)[T.jul] -0.9189 0.077 -11.995 0.000 -1.069 -0.769
21 C(month)[T.jun] 0.4662 0.094 4.980 0.000 0.283 0.650 C(month)[T.jun] 0.4662 0.094 4.980 0.000 0.283 0.650
22 C(month)[T.mar] 1.6243 0.119 13.595 0.000 1.390 1.858 C(month)[T.mar] 1.6243 0.119 13.595 0.000 1.390 1.858
23 C(month)[T.may] -0.3804 0.072 -5.281 0.000 -0.522 -0.239 C(month)[T.may] -0.3804 0.072 -5.281 0.000 -0.522 -0.239
24 C(month)[T.nov] -0.9173 0.084 -10.905 0.000 -1.082 -0.752 C(month)[T.nov] -0.9173 0.084 -10.905 0.000 -1.082 -0.752
25 C(month)[T.oct] 0.8956 0.108 8.293 0.000 0.684 1.107 C(month)[T.oct] 0.8956 0.108 8.293 0.000 0.684 1.107
26 C(month)[T.sep] 0.8829 0.119 7.392 0.000 0.649 1.117 C(month)[T.sep] 0.8829 0.119 7.392 0.000 0.649 1.117
27 C(poutcome)[T.other] 0.3333 0.169 1.970 0.049 0.002 0.665 C(poutcome)[T.other] 0.3333 0.169 1.970 0.049 0.002 0.665
28 C(poutcome)[T.success] 2.4414 0.160 15.269 0.000 2.128 2.755 C(poutcome)[T.success] 2.4414 0.160 15.269 0.000 2.128 2.755
29 C(poutcome)[T.unknown] -0.0414 0.227 -0.183 0.855 -0.486 0.403 C(poutcome)[T.unknown] -0.0414 0.227 -0.183 0.855 -0.486 0.403
30 balance 1.525e-05 5.09e-06 2.996 0.003 5.27e-06 2.52e-05 balance 0.0464 0.015 2.996 0.003 0.016 0.077
31 day 0.0107 0.002 4.281 0.000 0.006 0.016 day 0.0889 0.021 4.281 0.000 0.048 0.130
32 duration 0.0042 6.42e-05 65.169 0.000 0.004 0.004 duration 1.0783 0.017 65.169 0.000 1.046 1.111
33 campaign -0.0940 0.010 -9.206 0.000 -0.114 -0.074 campaign -0.2912 0.032 -9.206 0.000 -0.353 -0.229
34 pdays 0.0002 0.000 0.413 0.679 -0.001 0.001 pdays 0.0190 0.046 0.413 0.679 -0.071 0.109
35 pdays:C(poutcome)[T.other] -0.0003 0.001 -0.359 0.719 -0.002 0.001 pdays:C(poutcome)[T.other] -0.0266 0.074 -0.359 0.719 -0.172 0.119
36 pdays:C(poutcome)[T.success] -0.0004 0.001 -0.584 0.560 -0.002 0.001 pdays:C(poutcome)[T.success] -0.0444 0.076 -0.584 0.560 -0.194 0.105
37 pdays:C(poutcome)[T.unknown] 0.0041 0.008 0.523 0.601 -0.011 0.020 pdays:C(poutcome)[T.unknown] 0.4130 0.790 0.523 0.601 -1.136 1.962
38 previous 0.0416 0.021 1.945 0.052 -0.000 0.084 previous 0.0959 0.049 1.945 0.052 -0.001 0.193
39 previous:C(poutcome)[T.other] -0.0269 0.017 -1.610 0.107 -0.060 0.006 previous:C(poutcome)[T.other] -0.0621 0.039 -1.610 0.107 -0.138 0.013
40 previous:C(poutcome)[T.success] -0.0179 0.030 -0.606 0.544 -0.076 0.040 previous:C(poutcome)[T.success] -0.0413 0.068 -0.606 0.544 -0.175 0.092
41 previous:C(poutcome)[T.unknown] -0.4841 0.694 -0.697 0.486 -1.844 0.876 previous:C(poutcome)[T.unknown] -1.1150 1.599 -0.697 0.486 -4.248 2.018
42 pdays:previous -4.709e-05 7.42e-05 -0.634 0.526 -0.000 9.84e-05 pdays:previous -0.0109 0.017 -0.634 0.526 -0.044 0.023



Variance inflation factors

features with multi-collinearity (vif > 10): default, marital, loan, education, age

feature variance inflation factor without target variance inflation factor with target ranking
default 89.590922 90.757180 1.0
marital 34.094449 34.095701 2.0
loan 29.192732 29.204954 3.0
education 27.754247 27.754449 4.0
age 18.582507 18.598972 5.0
job 9.713535 9.744778 6.0
housing 9.418423 9.458427 7.0
contact 8.074904 8.092028 8.0
day 4.757858 4.758009 9.0
month 3.446856 3.559682 10.0
poutcome 2.899358 3.101371 11.0
duration 2.022798 2.419260 12.0
campaign 1.873813 1.874478 13.0
pdays 1.721085 1.721512 14.0
y - 1.597047 15.0
previous 1.373109 1.373142 16.0
balance 1.228526 1.229092 17.0





Covariance Analysis

correlation of age, balance, day, duration campaign, pdays, previous

As shown in the heatmap, "deposit yes" exhibits strong correlations with customer attributes. I have performed regression analysis and principle component analysis(PCA) to explore impact of individual attributes on "deposit yes".





Principle component analysis

  • Features with high-variance : balance, age, day, duration, campaign, pdays, previous
  • Selected strongly correlated features
    • Correlation between explainatory features
      • positive correlation: (job, education), (pdays, previous), (pdays, poutcome), (previous, poutcome)
      • negative correlation: (age, marital)
    • Target feature correlation
      • positive correlation: duration, poutcome, month
  • Efficient feature dimension range: 7 ~ 9



Regression coefficient without feature interaction

(Note) Covariance analysis has been conducted without one-hot encoding for categorical variables.

  0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
centering -0.0 4.0 4.0 3.0 0.0 0.0 6.0 4.0 7.0 -0.0 4.0 0.0 -0.0 0.0 0.0 4.0
standardizing -0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 -0.0 0.0 1.0 -0.0 0.0 0.0 0.0
pc_centering 0.0 0.0 0.0 0.0 -0.0 -0.0 0.0 -8.0 4.0 -9.0 -0.0 0.0 -4.0 -2.0 2.0 -0.0
pc_standardizing 1.0 -0.0 -0.0 -0.0 -0.0 1.0 -0.0 -0.0 -0.0 0.0 -0.0 -0.0 -0.0 -0.0 0.0 0.0

centering & standardizing : '0:age', '1:job', '2:marital', '3:education', '4:default', '5:balance', '6:housing', '7:loan', '8:contact', '9:day', '10:month', '11:duration', '12:campaign', '13:pdays', '14:previous', '15:poutcome'




Explainatory Centering Features with target feature
Principle Component of Explainatory Centering Features without target feature
Principle Component of Explainatory Standardizing Features without target feature





Exploratory factor analysis

: (orthogonal) varimax rotation

Factor Loadings with target feature
Factor Loadings without target feature




Exploratory Data Analysis

Exploration of association with target feature: multivariate analysis

Conditional Probability for deposit(y; target) feature, conditions = (duration, pcoutcome)


y Level0 duration Level1 poutcome Level2
count probaility rank count probaility rank count probaility rank
0 no 39922 0.883015 1.0 (-4.918, 491.8] 36702 0.811794 1.0 failure 3990 0.088253 2.0
1 no 39922 0.883015 1.0 (-4.918, 491.8] 36702 0.811794 1.0 other 1407 0.031121 5.0
2 no 39922 0.883015 1.0 (-4.918, 491.8] 36702 0.811794 1.0 success 486 0.010750 8.0
3 no 39922 0.883015 1.0 (-4.918, 491.8] 36702 0.811794 1.0 unknown 30819 0.681670 1.0
4 no 39922 0.883015 1.0 (1475.4, 1967.2] 64 0.001416 8.0 failure 6 0.000133 31.5
5 no 39922 0.883015 1.0 (1475.4, 1967.2] 64 0.001416 8.0 other 3 0.000066 37.0
6 no 39922 0.883015 1.0 (1475.4, 1967.2] 64 0.001416 8.0 success 1 0.000022 42.0
7 no 39922 0.883015 1.0 (1475.4, 1967.2] 64 0.001416 8.0 unknown 54 0.001194 19.0
8 no 39922 0.883015 1.0 (1967.2, 2459.0] 20 0.000442 10.0 failure 2 0.000044 38.0
9 no 39922 0.883015 1.0 (1967.2, 2459.0] 20 0.000442 10.0 other 1 0.000022 42.0
10 no 39922 0.883015 1.0 (1967.2, 2459.0] 20 0.000442 10.0 unknown 17 0.000376 27.0
11 no 39922 0.883015 1.0 (2459.0, 2950.8] 4 0.000088 14.0 unknown 4 0.000088 35.5
12 no 39922 0.883015 1.0 (2950.8, 3442.6] 6 0.000133 12.0 unknown 6 0.000133 31.5
13 no 39922 0.883015 1.0 (3442.6, 3934.4] 1 0.000022 16.0 unknown 1 0.000022 42.0
14 no 39922 0.883015 1.0 (4426.2, 4918.0] 1 0.000022 16.0 unknown 1 0.000022 42.0
15 no 39922 0.883015 1.0 (491.8, 983.6] 2776 0.061401 3.0 failure 249 0.005508 12.0
16 no 39922 0.883015 1.0 (491.8, 983.6] 2776 0.061401 3.0 other 104 0.002300 16.0
17 no 39922 0.883015 1.0 (491.8, 983.6] 2776 0.061401 3.0 success 39 0.000863 20.0
18 no 39922 0.883015 1.0 (491.8, 983.6] 2776 0.061401 3.0 unknown 2384 0.052731 3.0
19 no 39922 0.883015 1.0 (983.6, 1475.4] 348 0.007697 6.0 failure 36 0.000796 21.0
20 no 39922 0.883015 1.0 (983.6, 1475.4] 348 0.007697 6.0 other 18 0.000398 26.0
21 no 39922 0.883015 1.0 (983.6, 1475.4] 348 0.007697 6.0 success 7 0.000155 29.5
22 no 39922 0.883015 1.0 (983.6, 1475.4] 348 0.007697 6.0 unknown 287 0.006348 11.0
23 yes 5289 0.116985 2.0 (-4.918, 491.8] 2975 0.065803 2.0 failure 406 0.008980 10.0
24 yes 5289 0.116985 2.0 (-4.918, 491.8] 2975 0.065803 2.0 other 208 0.004601 13.0
25 yes 5289 0.116985 2.0 (-4.918, 491.8] 2975 0.065803 2.0 success 782 0.017297 7.0
26 yes 5289 0.116985 2.0 (-4.918, 491.8] 2975 0.065803 2.0 unknown 1579 0.034925 4.0
27 yes 5289 0.116985 2.0 (1475.4, 1967.2] 112 0.002477 7.0 failure 9 0.000199 28.0
28 yes 5289 0.116985 2.0 (1475.4, 1967.2] 112 0.002477 7.0 other 4 0.000088 35.5
29 yes 5289 0.116985 2.0 (1475.4, 1967.2] 112 0.002477 7.0 success 5 0.000111 33.5
30 yes 5289 0.116985 2.0 (1475.4, 1967.2] 112 0.002477 7.0 unknown 94 0.002079 17.0
31 yes 5289 0.116985 2.0 (1967.2, 2459.0] 23 0.000509 9.0 failure 1 0.000022 42.0
32 yes 5289 0.116985 2.0 (1967.2, 2459.0] 23 0.000509 9.0 success 1 0.000022 42.0
33 yes 5289 0.116985 2.0 (1967.2, 2459.0] 23 0.000509 9.0 unknown 21 0.000464 24.0
34 yes 5289 0.116985 2.0 (2459.0, 2950.8] 7 0.000155 11.0 unknown 7 0.000155 29.5
35 yes 5289 0.116985 2.0 (2950.8, 3442.6] 5 0.000111 13.0 unknown 5 0.000111 33.5
36 yes 5289 0.116985 2.0 (3442.6, 3934.4] 1 0.000022 16.0 unknown 1 0.000022 42.0
37 yes 5289 0.116985 2.0 (491.8, 983.6] 1649 0.036473 4.0 failure 170 0.003760 14.0
38 yes 5289 0.116985 2.0 (491.8, 983.6] 1649 0.036473 4.0 other 76 0.001681 18.0
39 yes 5289 0.116985 2.0 (491.8, 983.6] 1649 0.036473 4.0 success 167 0.003694 15.0
40 yes 5289 0.116985 2.0 (491.8, 983.6] 1649 0.036473 4.0 unknown 1236 0.027338 6.0
41 yes 5289 0.116985 2.0 (983.6, 1475.4] 517 0.011435 5.0 failure 32 0.000708 22.0
42 yes 5289 0.116985 2.0 (983.6, 1475.4] 517 0.011435 5.0 other 19 0.000420 25.0
43 yes 5289 0.116985 2.0 (983.6, 1475.4] 517 0.011435 5.0 success 23 0.000509 23.0
44 yes 5289 0.116985 2.0 (983.6, 1475.4] 517 0.011435 5.0 unknown 443 0.009799 9.0
support confidence lift
CondFreq no yes no yes no yes
duration poutcome
(-4.918, 491.8] unknown 32398.0 30819.0 1579.0 0.951262 0.048738 1.077289 0.416615
failure 4396.0 3990.0 406.0 0.907643 0.092357 1.027891 0.789476
other 1615.0 1407.0 208.0 0.871207 0.128793 0.986628 1.100934
success 1268.0 486.0 782.0 0.383281 0.616719 0.434059 5.271789
(491.8, 983.6] unknown 3620.0 2384.0 1236.0 0.658564 0.341436 0.745812 2.918639
failure 419.0 249.0 170.0 0.594272 0.405728 0.673003 3.468210
other 180.0 104.0 76.0 0.577778 0.422222 0.654324 3.609206
success 206.0 39.0 167.0 0.189320 0.810680 0.214402 6.929786
(1475.4, 1967.2] unknown 148.0 54.0 94.0 0.364865 0.635135 0.413203 5.429211
failure 15.0 6.0 9.0 0.400000 0.600000 0.452993 5.128871
other 7.0 3.0 4.0 0.428571 0.571429 0.485350 4.884639
success 6.0 1.0 5.0 0.166667 0.833333 0.188747 7.123432
(983.6, 1475.4] unknown 730.0 287.0 443.0 0.393151 0.606849 0.445237 5.187420
failure 68.0 36.0 32.0 0.529412 0.470588 0.599550 4.022644
other 37.0 18.0 19.0 0.486486 0.513514 0.550938 4.389574
success 30.0 7.0 23.0 0.233333 0.766667 0.264246 6.553558
(1967.2, 2459.0] unknown 38.0 17.0 21.0 0.447368 0.552632 0.506637 4.723960
failure 3.0 2.0 1.0 0.666667 0.333333 0.754989 2.849373
other 1.0 1.0 0.0 1.000000 0.000000 1.132483 0.000000
success 1.0 0.0 1.0 0.000000 1.000000 0.000000 8.548119
(2459.0, 2950.8] unknown 11.0 4.0 7.0 0.363636 0.636364 0.411812 5.439712
failure 0.0 0.0 0.0 0.000000 0.000000 NaN NaN
other 0.0 0.0 0.0 0.000000 0.000000 NaN NaN
success 0.0 0.0 0.0 0.000000 0.000000 NaN NaN
(2950.8, 3442.6] unknown 11.0 6.0 5.0 0.545455 0.454545 0.617718 3.885509
failure 0.0 0.0 0.0 0.000000 0.000000 NaN NaN
other 0.0 0.0 0.0 0.000000 0.000000 NaN NaN
success 0.0 0.0 0.0 0.000000 0.000000 NaN NaN
(3442.6, 3934.4] unknown 2.0 1.0 1.0 0.500000 0.500000 0.566242 4.274059
failure 0.0 0.0 0.0 0.000000 0.000000 NaN NaN
other 0.0 0.0 0.0 0.000000 0.000000 NaN NaN
success 0.0 0.0 0.0 0.000000 0.000000 NaN NaN
(4426.2, 4918.0] unknown 1.0 1.0 0.0 1.000000 0.000000 1.132483 0.000000
failure 0.0 0.0 0.0 0.000000 0.000000 NaN NaN
other 0.0 0.0 0.0 0.000000 0.000000 NaN NaN
success 0.0 0.0 0.0 0.000000 0.000000 NaN NaN



Feature importance and information values for target variable

feature feature importance fi ranking information values iv ranking
duration 0.297104 1.0 1.816187 1
balance 0.120111 2.0 1.280381 2
poutcome 0.098661 3.0 0.514609 4
month 0.091646 4.0 0.436131 5
age 0.091354 5.0 0.226923 8
day 0.084840 6.0 0.117758 11
job 0.045463 7.0 0.155697 10
pdays 0.036583 8.0 0.559210 3
campaign 0.033835 9.0 0.089986 12
contact 0.023641 10.0 0.300396 6
education 0.020378 11.0 0.050112 14
marital 0.016275 12.0 0.040127 15
previous 0.016039 13.0 0.230969 7
housing 0.015632 14.0 0.188681 9
loan 0.007100 15.0 0.054859 13
default 0.001339 16.0 0.006256 16

Decision path about target variable

Decision Tree(criterion='gini', min_impurity_decrease=0.001); Decision Path



Exploration of independence between features: bivariate analysis

Decision boundary formation by non-linear transformation

The variables that has the most influence on the target variable: duration(numerical feature), poutcome(categorical feature)

chi2 mi
statistic p-value dof dependence mi adjusted_mi normalized_mi
job marital 3837.6027 0.0000 22 True 0.0437 0.0287 0.0289
education 28483.1365 0.0000 33 True 0.3069 0.1894 0.1896
default 60.3425 0.0000 11 True 0.0007 0.0005 0.0006
housing 3588.7309 0.0000 11 True 0.0411 0.0292 0.0293
loan 512.8105 0.0000 11 True 0.0069 0.0053 0.0054
contact 2047.1332 0.0000 22 True 0.0207 0.0139 0.0141
month 6043.8664 0.0000 121 True 0.0630 0.0297 0.0304
poutcome 559.2778 0.0000 33 True 0.0058 0.0039 0.0042
y 836.1055 0.0000 11 True 0.0083 0.0066 0.0067
marital education 1337.5099 0.0000 6 True 0.0161 0.0158 0.0159
default 16.7194 0.0002 2 True 0.0002 0.0003 0.0003
housing 19.3448 0.0001 2 True 0.0002 0.0002 0.0003
loan 121.9525 0.0000 2 True 0.0014 0.0020 0.0021
contact 183.8431 0.0000 4 True 0.0021 0.0023 0.0024
month 472.8791 0.0000 22 True 0.0052 0.0034 0.0035
poutcome 76.4791 0.0000 6 True 0.0008 0.0010 0.0011
y 196.4959 0.0000 2 True 0.0021 0.0033 0.0033
education default 11.4246 0.0096 3 True 0.0001 0.0002 0.0002
housing 643.8888 0.0000 3 True 0.0071 0.0078 0.0079
loan 291.3714 0.0000 3 True 0.0035 0.0044 0.0044
contact 1363.4366 0.0000 6 True 0.0151 0.0155 0.0156
month 1644.2895 0.0000 33 True 0.0178 0.0110 0.0113
poutcome 172.3951 0.0000 9 True 0.0019 0.0020 0.0022
y 238.9235 0.0000 3 True 0.0026 0.0035 0.0035
default housing 1.5514 0.2129 1 False 0.0000 0.0000 0.0000
loan 268.1092 0.0000 1 True 0.0024 0.0089 0.0089
contact 26.9295 0.0000 2 True 0.0003 0.0007 0.0007
month 155.6489 0.0000 11 True 0.0021 0.0019 0.0020
poutcome 73.8033 0.0000 3 True 0.0011 0.0029 0.0030
y 22.2022 0.0000 1 True 0.0003 0.0013 0.0013
housing loan 76.9748 0.0000 1 True 0.0009 0.0015 0.0015
contact 2062.4619 0.0000 2 True 0.0235 0.0312 0.0312
month 11494.0192 0.0000 11 True 0.1396 0.1024 0.1025
poutcome 926.4237 0.0000 3 True 0.0105 0.0156 0.0157
y 874.8224 0.0000 1 True 0.0097 0.0184 0.0184
loan contact 11.9735 0.0025 2 True 0.0001 0.0002 0.0002
month 1511.2025 0.0000 11 True 0.0155 0.0124 0.0125
poutcome 137.9993 0.0000 3 True 0.0019 0.0035 0.0035
y 209.6170 0.0000 1 True 0.0026 0.0065 0.0066
contact month 23715.3268 0.0000 22 True 0.2971 0.2082 0.2083
poutcome 3892.1528 0.0000 6 True 0.0625 0.0851 0.0852
y 1035.7142 0.0000 2 True 0.0136 0.0231 0.0232
month poutcome 6230.9857 0.0000 33 True 0.0638 0.0472 0.0475
y 3061.8389 0.0000 11 True 0.0244 0.0202 0.0203
poutcome y 4391.5066 0.0000 3 True 0.0294 0.0581 0.0582
correlation regression
pearson p-pval spearmanr s-pval kendalltau k-pval quasi-dependence f f-pval quasi-dependence
age balance 0.097783 1.846987e-96 0.096380 9.361066e-94 0.065226 6.014181e-93 True 436.437210 1.846987e-96 True
day -0.009120 5.248053e-02 -0.008948 5.709532e-02 -0.006681 3.907395e-02 True 3.760582 5.248053e-02 False
duration -0.004648 3.229726e-01 -0.033257 1.514473e-12 -0.022444 1.784082e-12 True 0.976892 3.229726e-01 False
campaign 0.004760 3.114630e-01 0.037136 2.816751e-15 0.027816 2.757255e-15 True 1.024485 3.114630e-01 False
pdays -0.023758 4.367248e-07 -0.017468 2.036697e-04 -0.013679 2.356496e-04 True 25.532326 4.367248e-07 True
previous 0.001288 7.841413e-01 -0.011900 1.139584e-02 -0.009518 1.129966e-02 True 0.075037 7.841413e-01 False
balance day 0.004503 3.383868e-01 0.001329 7.775064e-01 0.001242 6.982198e-01 False 0.916553 3.383868e-01 False
duration 0.021560 4.545003e-06 0.042651 1.161677e-19 0.028586 1.086553e-19 True 21.025178 4.545003e-06 True
campaign -0.014578 1.936247e-03 -0.030959 4.573514e-11 -0.022924 4.563415e-11 True 9.610140 1.936247e-03 True
pdays 0.003435 4.651272e-01 0.069676 9.007228e-50 0.054180 4.248024e-49 True 0.533537 4.651272e-01 False
previous 0.016674 3.919530e-04 0.079536 2.361550e-64 0.062863 3.301276e-64 True 12.572057 3.919530e-04 True
day duration -0.030206 1.327167e-10 -0.058142 3.673297e-35 -0.039337 8.186136e-35 True 41.287405 1.327167e-10 True
campaign 0.162490 4.793707e-265 0.139581 1.892587e-195 0.105353 3.056587e-195 True 1226.027295 4.793707e-265 True
pdays -0.093044 1.764882e-87 -0.092226 5.644265e-86 -0.072813 1.148434e-84 True 394.801213 1.764882e-87 True
previous -0.051710 3.729346e-28 -0.087780 4.944255e-78 -0.070418 8.956173e-78 True 121.211875 3.729346e-28 True
duration campaign -0.084570 1.521417e-72 -0.107962 2.779222e-117 -0.079976 3.223840e-117 True 325.663953 1.521417e-72 True
pdays -0.001565 7.393560e-01 0.028698 1.040577e-09 0.022478 9.221545e-10 True 0.110695 7.393560e-01 False
previous 0.001203 7.981072e-01 0.031175 3.355401e-11 0.024689 2.785197e-11 True 0.065433 7.981072e-01 False
campaign pdays -0.088628 1.621197e-79 -0.112284 9.254439e-127 -0.096802 1.246977e-125 True 357.921953 1.621197e-79 True
previous -0.032855 2.794818e-12 -0.108448 2.496456e-118 -0.094371 3.617957e-117 True 48.854499 2.794818e-12 True
pdays previous 0.454820 0.000000e+00 0.985645 0.000000e+00 0.902709 0.000000e+00 True 11791.089955 0.000000e+00 True
variance correlation
f f-pval quasi_dependence spearmanr s-pval kendalltau k-pval quasi_dependence
categorical numerical
job age 1377.936493 0.000000e+00 True -0.008217 8.062405e-02 -0.003349 3.241846e-01 False
balance 43.007783 5.709430e-94 True 0.029609 3.036066e-10 0.021057 3.651549e-10 True
day 9.335477 5.489892e-17 True 0.022320 2.070497e-06 0.016542 1.230417e-06 True
duration 6.842766 1.232447e-11 True 0.005277 2.618159e-01 0.003780 2.596166e-01 False
campaign 12.483647 6.253473e-24 True 0.012609 7.337685e-03 0.009946 7.306402e-03 True
pdays 14.161079 1.107741e-27 True -0.008851 5.984944e-02 -0.007197 6.621746e-02 False
previous 7.591359 3.183471e-13 True -0.002165 6.452470e-01 -0.001853 6.396465e-01 False
marital age 5228.732920 0.000000e+00 True -0.442815 0.000000e+00 -0.354618 0.000000e+00 True
balance 17.954318 1.605587e-08 True 0.020281 1.612420e-05 0.015796 2.068852e-05 True
day 1.348193 2.597196e-01 False -0.006203 1.871711e-01 -0.004938 1.898360e-01 False
duration 12.078630 5.697950e-06 True 0.017361 2.229138e-04 0.013683 2.198743e-04 True
campaign 22.336983 2.013545e-10 True -0.030345 1.092802e-10 -0.026402 1.140811e-10 True
pdays 19.695866 2.817855e-09 True 0.025644 4.942493e-08 0.023614 4.831779e-08 True
previous 6.550023 1.431440e-03 True 0.025697 4.637298e-08 0.023874 4.695176e-08 True
education age 731.757745 0.000000e+00 True -0.115575 3.122264e-134 -0.090377 1.833152e-133 True
balance 116.682074 2.849538e-75 True 0.075328 6.801877e-58 0.058231 9.724104e-58 True
day 10.166018 1.089429e-06 True 0.024587 1.708703e-07 0.019347 1.587951e-07 True
duration 0.218271 8.837767e-01 False -0.003701 4.312879e-01 -0.002875 4.281401e-01 False
campaign 6.617783 1.824042e-04 True -0.001645 7.265724e-01 -0.001410 7.253331e-01 False
pdays 8.746901 8.522341e-06 True 0.026293 2.252637e-08 0.023545 2.804749e-08 True
previous 10.362132 8.192732e-07 True 0.034730 1.505560e-13 0.031632 1.510394e-13 True
default age 14.456560 1.436177e-04 True -0.014681 1.798204e-03 -0.012157 1.798915e-03 True
balance 202.302934 8.246278e-46 True -0.167739 1.495206e-282 -0.137371 1.345449e-278 True
day 4.015362 4.509349e-02 True 0.009727 3.862282e-02 0.008087 3.862420e-02 True
duration 4.540782 3.310185e-02 True -0.007100 1.311333e-01 -0.005803 1.311318e-01 False
campaign 12.796137 3.476985e-04 True 0.014265 2.419778e-03 0.012894 2.420612e-03 True
pdays 40.668687 1.820913e-10 True -0.038053 5.780955e-16 -0.036344 5.915284e-16 True
previous 15.193840 9.715925e-05 True -0.039279 6.554908e-17 -0.037892 6.728462e-17 True
housing age 1611.326374 0.000000e+00 True -0.154340 5.071808e-239 -0.127809 3.390580e-236 True
balance 214.812902 1.582632e-48 True -0.068292 7.020174e-48 -0.055928 8.962332e-48 True
day 35.425150 2.669905e-09 True -0.027605 4.340367e-09 -0.022951 4.367189e-09 True
duration 1.164622 2.805147e-01 False 0.005187 2.700684e-01 0.004240 2.700637e-01 False
campaign 25.190874 5.212410e-07 True -0.037807 8.877289e-16 -0.034174 9.078130e-16 True
pdays 708.053596 8.305619e-155 True 0.080977 1.201289e-66 0.077341 1.950718e-66 True
previous 62.231686 3.121519e-15 True 0.062087 7.288802e-40 0.059896 8.608649e-40 True
loan age 11.082880 8.719799e-04 True -0.004720 3.155434e-01 -0.003909 3.155381e-01 False
balance 323.965408 3.544641e-72 True -0.128966 6.474347e-167 -0.105618 1.515890e-165 True
day 5.845397 1.562178e-02 True 0.012205 9.455904e-03 0.010147 9.457379e-03 True
duration 6.965838 8.310901e-03 True -0.013211 4.967530e-03 -0.010798 4.968703e-03 True
campaign 4.503144 3.383802e-02 True 0.001587 7.357456e-01 0.001435 7.357415e-01 False
pdays 23.418093 1.307759e-06 True -0.029571 3.197051e-10 -0.028243 3.223325e-10 True
previous 5.514300 1.886590e-02 True -0.030700 6.614993e-11 -0.029617 6.678465e-11 True
contact age 677.227898 1.597830e-290 True 0.053128 1.249988e-29 0.042091 1.565797e-28 True
balance 55.110597 1.244231e-24 True -0.034245 3.256355e-13 -0.027321 3.537308e-13 True
day 33.846140 2.050227e-15 True -0.027426 5.457756e-09 -0.022262 5.305953e-09 True
duration 19.925809 2.239459e-09 True -0.036802 4.969902e-15 -0.029422 4.272230e-15 True
campaign 70.326448 3.199084e-31 True 0.007996 8.909032e-02 0.007118 8.603679e-02 False
pdays 1486.235447 0.000000e+00 True -0.279500 0.000000e+00 -0.260481 0.000000e+00 True
previous 550.425330 6.567538e-237 True -0.278906 0.000000e+00 -0.262108 0.000000e+00 True
month age 108.256036 3.059617e-245 True -0.032608 4.062113e-12 -0.024028 2.017940e-12 True
balance 102.277424 2.002290e-231 True 0.027575 4.512501e-09 0.018797 2.645153e-08 True
day 1052.969050 0.000000e+00 True 0.006697 1.544308e-01 0.009692 4.715761e-03 True
duration 19.028489 1.079679e-38 True 0.009111 5.270302e-02 0.006402 5.763659e-02 False
campaign 232.959857 0.000000e+00 True -0.147398 5.864119e-218 -0.116475 3.733046e-214 True
pdays 365.011077 0.000000e+00 True 0.053558 4.388272e-30 0.043274 4.639729e-28 True
previous 130.342323 3.718515e-296 True 0.056224 5.486129e-33 0.047424 9.785824e-33 True
poutcome age 26.381925 4.840702e-17 True 0.013266 4.790407e-03 0.010502 5.682389e-03 True
balance 23.570292 3.088104e-15 True -0.075375 5.783112e-58 -0.060154 9.550789e-58 True
day 113.814955 2.009226e-73 True 0.088062 1.591110e-78 0.071072 1.448078e-77 True
duration 31.136681 4.250760e-20 True -0.025125 9.140220e-08 -0.019909 1.085663e-07 True
campaign 192.829765 2.888451e-124 True 0.116698 7.855655e-137 0.102844 6.674510e-136 True
pdays 51189.981633 0.000000e+00 True -0.990409 0.000000e+00 -0.933486 0.000000e+00 True
previous 6179.512197 0.000000e+00 True -0.987244 0.000000e+00 -0.925074 0.000000e+00 True
y age 28.625233 8.825644e-08 True -0.008750 6.281716e-02 -0.007246 6.281783e-02 False
balance 126.572276 2.521114e-29 True 0.100295 2.095556e-101 0.082138 6.593767e-101 True
day 36.359010 1.653880e-09 True -0.029548 3.299041e-10 -0.024566 3.326067e-10 True
duration 8333.761148 0.000000e+00 True 0.342469 0.000000e+00 0.279923 0.000000e+00 True
campaign 243.358404 1.012347e-54 True -0.084054 1.109367e-71 -0.075977 1.948470e-71 True
pdays 490.696563 3.790553e-108 True 0.154055 3.900096e-238 0.147137 2.484050e-235 True
previous 396.443989 7.801830e-88 True 0.169124 2.852229e-287 0.163155 3.491720e-283 True



Descriptive statistics

  • Class imbalanced categorical features: default, loan ,y

Categorical Attributes

count ratio rank self-information
total_count column unique top freq entropy instance
45211 job 12 blue-collar 9732 3.055353 blue-collar 9732 0.215257 1.0 2.215866
management 9458 0.209197 2.0 2.257067
technician 7597 0.168034 3.0 2.573172
admin. 5171 0.114375 4.0 3.128159
services 4154 0.091880 5.0 3.444101
retired 2264 0.050076 6.0 4.319728
self-employed 1579 0.034925 7.0 4.839591
entrepreneur 1487 0.032890 8.0 4.926197
unemployed 1303 0.028820 9.0 5.116765
housemaid 1240 0.027427 10.0 5.188262
student 938 0.020747 11.0 5.590942
unknown 288 0.006370 12.0 7.294461
marital 3 married 27214 1.315270 married 27214 0.601933 1.0 0.732325
single 12790 0.282896 2.0 1.821658
divorced 5207 0.115171 3.0 3.118150
education 4 secondary 23202 1.614902 secondary 23202 0.513194 1.0 0.962425
tertiary 13301 0.294198 2.0 1.765139
primary 6851 0.151534 3.0 2.722287
unknown 1857 0.041074 4.0 4.605628
default 2 no 44396 0.130212 no 44396 0.981973 1.0 0.026244
yes 815 0.018027 2.0 5.793730
housing 2 yes 25130 0.990985 yes 25130 0.555838 1.0 0.847263
no 20081 0.444162 2.0 1.170843
loan 2 no 37967 0.634851 no 37967 0.839774 1.0 0.251928
yes 7244 0.160226 2.0 2.641815
contact 3 cellular 29285 1.177525 cellular 29285 0.647741 1.0 0.626512
unknown 13020 0.287983 2.0 1.795944
telephone 2906 0.064276 3.0 3.959567
month 12 may 13766 2.937381 may 13766 0.304483 1.0 1.715564
jul 6895 0.152507 2.0 2.713051
aug 6247 0.138174 3.0 2.855438
jun 5341 0.118135 4.0 3.081492
nov 3970 0.087810 5.0 3.509463
apr 2932 0.064851 6.0 3.946717
feb 2649 0.058592 7.0 4.093154
jan 1403 0.031032 8.0 5.010087
oct 738 0.016323 9.0 5.936909
sep 579 0.012807 10.0 6.286967
mar 477 0.010551 11.0 6.566541
dec 214 0.004733 12.0 7.722919
poutcome 4 unknown 36959 0.937015 unknown 36959 0.817478 1.0 0.290748
failure 4901 0.108403 2.0 3.205526
other 1840 0.040698 3.0 4.618896
success 1511 0.033421 4.0 4.903098
y 2 no 39922 0.520631 no 39922 0.883015 1.0 0.179490
yes 5289 0.116985 2.0 3.095607

Numerical Attributes

column count norm_statstic norm_pval normality l_shift r_shift iqr_min iqr_25 mean iqr_75 iqr_max std diff_maxmin
0 age 45211.0 3066.989468 0.0 False True False 18.0 33.0 40.936210 48.0 95.0 10.618762 77.0
1 balance 45211.0 64697.210210 0.0 False True False -8019.0 72.0 1362.272058 1428.0 102127.0 3044.765829 110146.0
2 day 45211.0 14624.380064 0.0 False False True 1.0 8.0 15.806419 21.0 31.0 8.322476 30.0
3 campaign 45211.0 45156.283654 0.0 False True False 1.0 1.0 2.763841 3.0 63.0 3.098021 62.0
4 pdays 45211.0 24050.969837 0.0 False True False -1.0 -1.0 40.197828 -1.0 871.0 100.128746 872.0
5 previous 45211.0 134066.595245 0.0 False True False 0.0 0.0 0.580323 0.0 275.0 2.303441 275.0



Description for attributes

  1. age
  2. job : type of job
  3. marital : marital status
  4. education
  5. default: has credit in default?
  6. housing: has housing loan?
  7. loan: has personal loan?
  8. contact: contact communication type
  9. month: last contact month of year
  10. day_of_week: last contact day of the week
  11. duration: last contact duration, in seconds (numeric). Important note: this attribute highly affects the output target (e.g., if duration=0 then y='no'). Yet, the duration is not known before a call is performed. Also, after the end of the call y is obviously known. Thus, this input should only be included for benchmark purposes and should be discarded if the intention is to have a realistic predictive model.
  12. campaign: number of contacts performed during this campaign and for this client (numeric, includes last contact)
  13. pdays: number of days that passed by after the client was last contacted from a previous campaign (numeric; 999 means client was not previously contacted)
  14. previous: number of contacts performed before this campaign and for this client (numeric)
  15. poutcome: outcome of the previous marketing campaign (categorical: 'failure','nonexistent','success') # social and economic context attributes
  16. y - has the client subscribed a term deposit? (binary target: 'yes','no')






Data Extraction

bank-full.csv
4.40MB
bank.csv
0.44MB

age job marital education default balance housing loan contact day month duration campaign pdays previous poutcome y
0 58 management married tertiary no 2143 yes no unknown 5 may 261 1 -1 0 unknown no
1 44 technician single secondary no 29 yes no unknown 5 may 151 1 -1 0 unknown no
2 33 entrepreneur married secondary no 2 yes yes unknown 5 may 76 1 -1 0 unknown no
3 47 blue-collar married unknown no 1506 yes no unknown 5 may 92 1 -1 0 unknown no
4 33 unknown single unknown no 1 no no unknown 5 may 198 1 -1 0 unknown no
5 35 management married tertiary no 231 yes no unknown 5 may 139 1 -1 0 unknown no
6 28 management single tertiary no 447 yes yes unknown 5 may 217 1 -1 0 unknown no
7 42 entrepreneur divorced tertiary yes 2 yes no unknown 5 may 380 1 -1 0 unknown no
8 58 retired married primary no 121 yes no unknown 5 may 50 1 -1 0 unknown no
9 43 technician single secondary no 593 yes no unknown 5 may 55 1 -1 0 unknown no





Missing value & Duplication inspection

column total missing-value duplication
quasi-dtypes freq not_freq freq ratio rank cardinality selectivity rank
0 age numeric 45211 45211 0 0.0 9.0 77 0.001703 14.0
1 job string 45211 45211 0 0.0 9.0 12 0.000265 9.5
2 marital string 45211 45211 0 0.0 9.0 3 0.000066 5.5
3 education string 45211 45211 0 0.0 9.0 4 0.000088 7.5
4 default string 45211 45211 0 0.0 9.0 2 0.000044 2.5
5 balance numeric 45211 45211 0 0.0 9.0 7168 0.158545 17.0
6 housing string 45211 45211 0 0.0 9.0 2 0.000044 2.5
7 loan string 45211 45211 0 0.0 9.0 2 0.000044 2.5
8 contact string 45211 45211 0 0.0 9.0 3 0.000066 5.5
9 day numeric 45211 45211 0 0.0 9.0 31 0.000686 11.0
10 month string 45211 45211 0 0.0 9.0 12 0.000265 9.5
11 duration numeric 45211 45211 0 0.0 9.0 1573 0.034792 16.0
12 campaign numeric 45211 45211 0 0.0 9.0 48 0.001062 13.0
13 pdays numeric 45211 45211 0 0.0 9.0 559 0.012364 15.0
14 previous numeric 45211 45211 0 0.0 9.0 41 0.000907 12.0
15 poutcome string 45211 45211 0 0.0 9.0 4 0.000088 7.5
16 y string 45211 45211 0 0.0 9.0 2 0.000044 2.5

References

'quantitative analysis > analysis report' 카테고리의 다른 글

[Regression] Air Quality  (2) 2023.05.07

+ Recent posts
